Technical Information
Complete specifications, overview, and design drawings
Product Overview
The SCA LT-12 Forklift Truck is designed to meet the demands of modern port, warehouse, and logistics operations. Built for strength, reliability, and efficiency, this heavy-duty forklift is capable of safely handling and transporting heavy materials with a lifting capacity of up to 12,000 kg. Engineered for smooth performance in warehouses, industrial facilities, and heavy-duty material handling environments, the SCA LT-12 ensures enhanced productivity, stability, and operational safety. Its robust construction and advanced handling capabilities make it an ideal solution for heavy lifting and high-intensity logistics operations.
The above machine is made available at a comparatively low price without compromising on quality, making them a cost-effective solution for port, yard, and logistics operations.

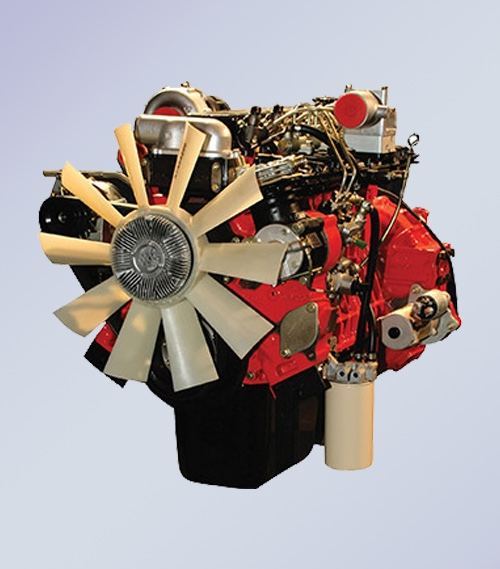

Engine
SCA LT-12 is powered by a modern Tier III - six cylinder Ashok Leyland engine that produces around 98 kW (133HP / 550nm) torque, this engine delivers the power required for hard, lifting and handling jobs while remaining extremely fuel, efficient, and dependable.
This machine can also be powered by a Tier V / CE V (commercial emission-V), modern four cylinder Eicher – E 494 engine that produces 101kW (137HP / 550 nm of torque), as an option.

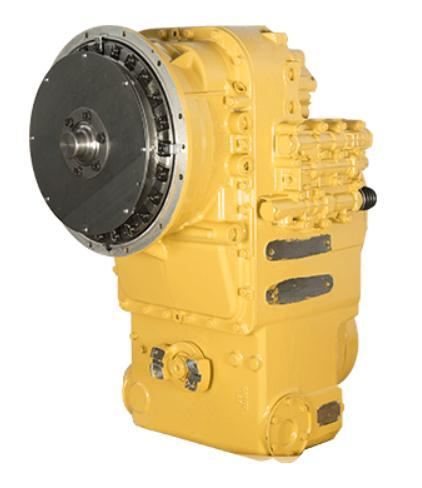

Transmission
The Avtec transmission (HINDUSTAN GROUP) provides precise and seamless control over the movement of the machine with 2 forward and 2 reverse gears.
Drive Axle
Equipped with TATA make heavy duty drive axle with Differential and Hub reduction. Since the reduction is achieved in both differential and hub, the stress on the drive shaft and axle shaft are reduced significantly. It completely eliminates shaft breakage issues, faced in similar equipment offered by competitors.
Key Highlights
Option of CE V emission norm engine for reduced environmental impact.
I Channel used for mast manufacture in place of C channel — superior rigidity, strength and fatigue resistance.

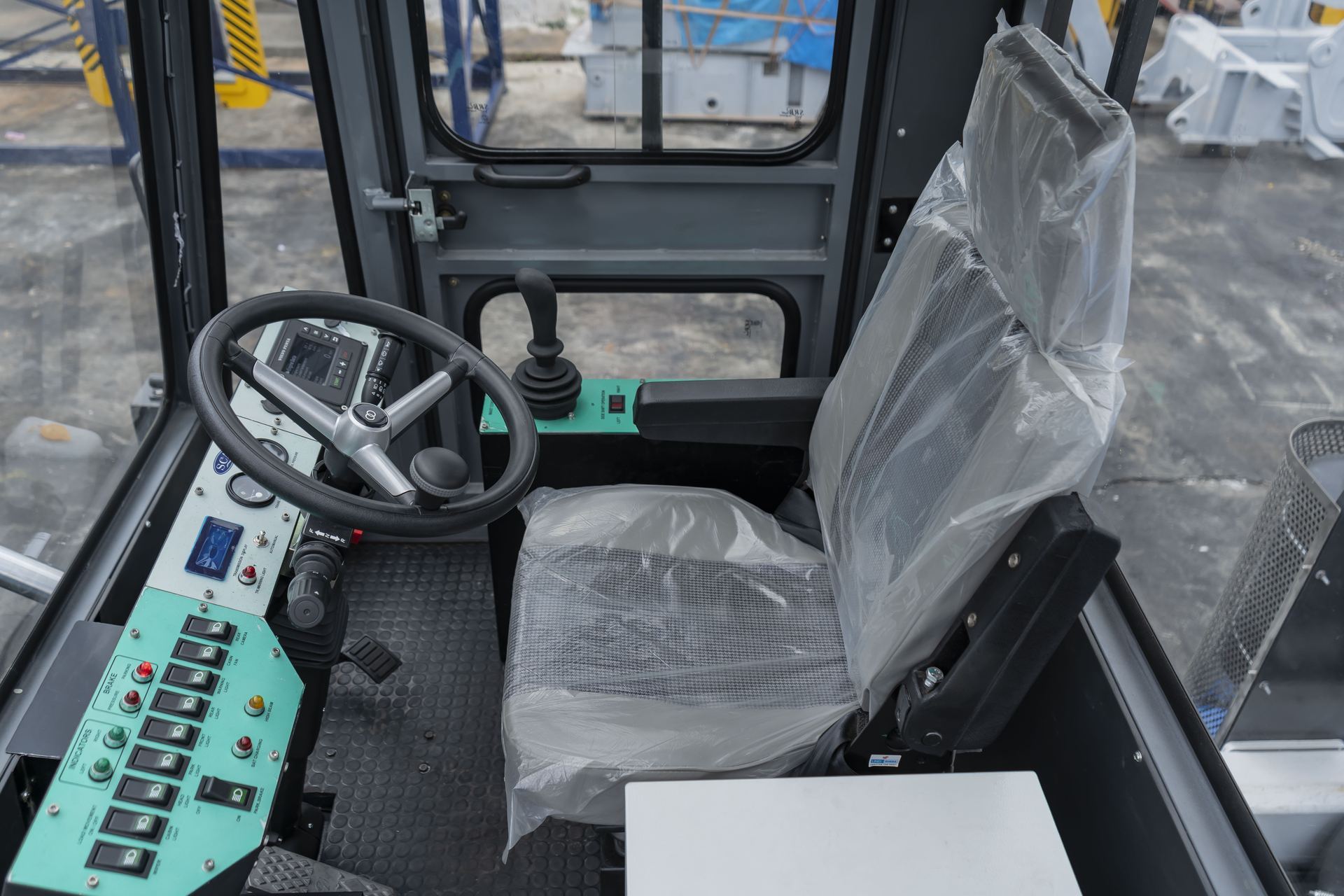

Elevated fully enclosed all-weather cabin offers exceptional visibility during operations in all weather conditions.
Hub reduction in drive axle eliminates the risk of shaft breakage.
Robust, proven design with 100+ machines currently in service.
Technical Specifications
| Make | SCA |
| Model | LT - 12 |
| Lifting Capacity / Load Centre | 12 Tons / 900 mm |
| Lift Height | 6.5 Meter |
| Mast | Duplex, Full Visibility |
| Tilt (Forward / Reverse) | 5° / 10° with Low Mount Tilt Cylinders |
| Forks (L × W × T) | 2100 × 200 × 80 mm |
| Engine Make | Ashok Leyland |
| Engine Model | H6ETIC3RU23 – BS III Engine |
| Engine Power | 133 HP @ 2200 RPM |
| Transmission Make | AVTEC |
| Transmission Model | TRT 221 |
| Transmission Speeds | 2 Forward / 2 Reverse |
| Transmission Type | Power Shift with Torque Converter and Mechanical Gear Shift |
| Drive Axle Make | TATA / EICHER |
| Drive Axle Model | #77043500112 / 440DH Ratio 6.428 RR (TRX) |
| Drive Axle Brakes | Dry Type |
| Counterweight | Single Piece, Removable Type |
| Tyres (Front) | 11.00 × 20, 16 PR (4 Nos.) |
| Tyres (Rear) | 11.00 × 20, 16 PR (2 Nos.) |
| Gross Vehicle Weight (Laden) | 30,215 Kgs |
| Gross Vehicle Weight (Unladen) | 18,215 Kgs |
| Colour Scheme (Chassis / CWT) | PU, Blue |
| Mast / Axles / Rims | PU, Dark Grey |
| Cabin | PU, Off White |
