Product Overview

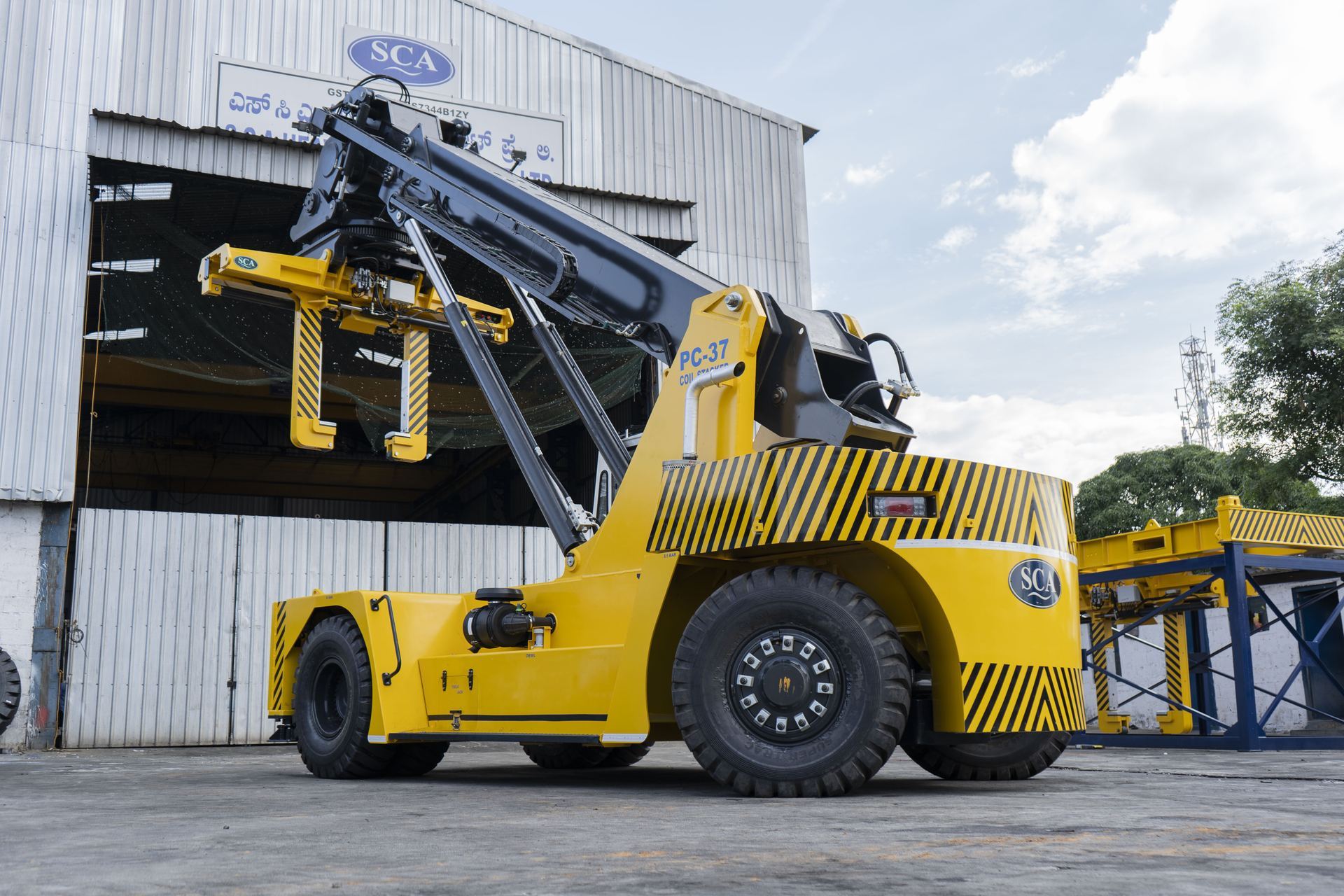

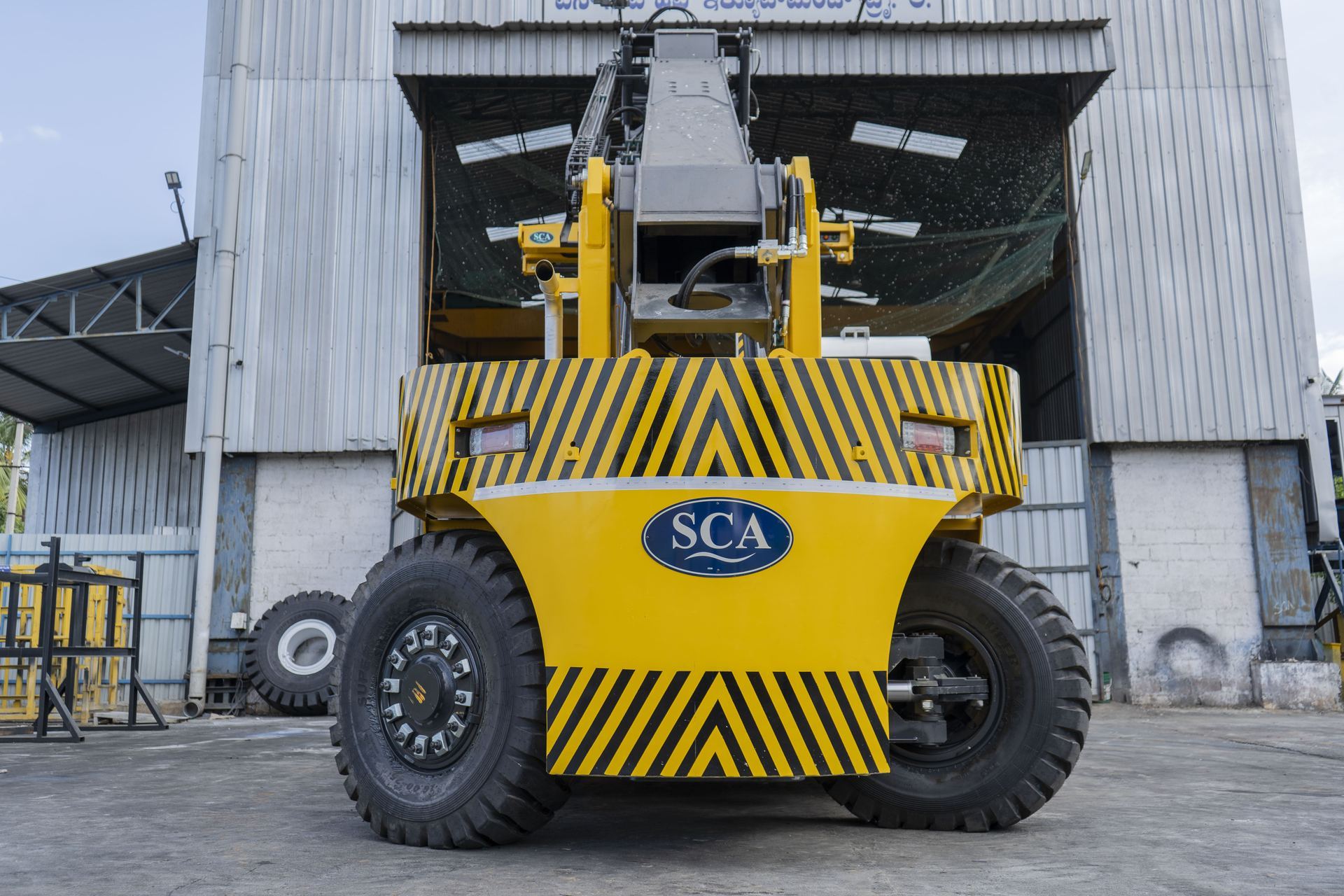

The PC-37 Coil Handler is a heavy-duty material handling equipment tailor made for safe and efficient handling of steel products like coils , slabs , plates etc in industrial environments. Built with a strong structure and advanced hydraulic system, it ensures stable lifting and precise coil positioning. Featuring specialized coil handling attachments and an ergonomic operator cabin, the PC-37 delivers excellent control, visibility, and operator comfort during long working hours. Ideal for steel plants, warehouses, and manufacturing facilities, it provides the strength, reliability, and efficiency required for demanding coil handling operations.
The above machine is made available at a comparatively low price without compromising on quality, making them a cost-effective solution for port, yard, and logistics operations.
Engine

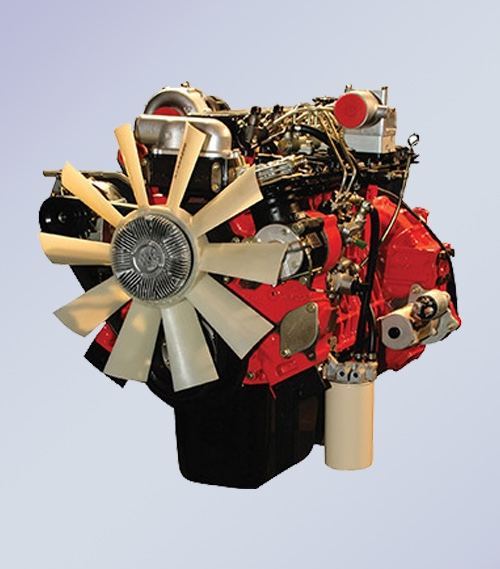

SCA LT - 12 is powered by a modern - Tier III - six cylinder Ashok Leyland engine that produces around 98 kW(133HP /550nm) torque, this engine delivers the power required for hard, lifting and handling jobs while remaining extremely fuel, efficient, and dependable.

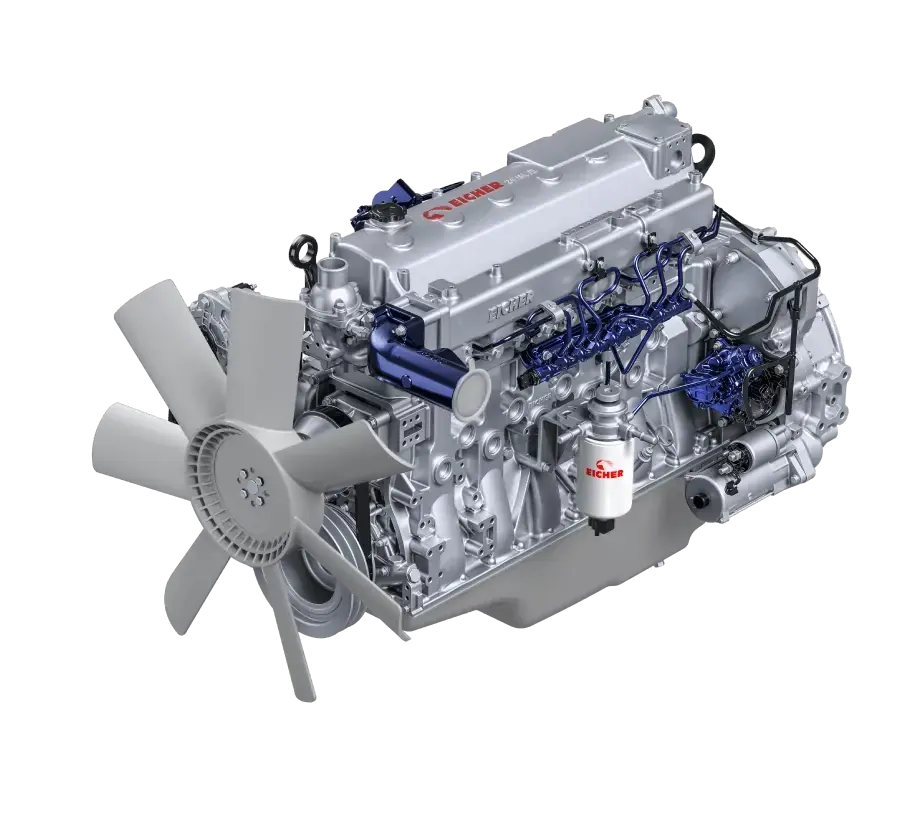

this machine can also be powered by a Tier V / CE V (commercial emission-V), modern four cylinder Eicher – E 494 engine that produces 101kW (137HP /550 nm of torque), as an option .
Transmission

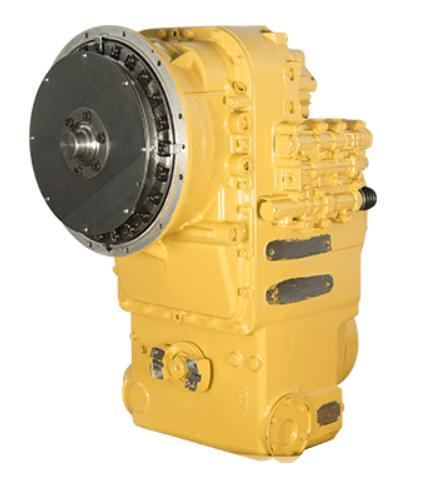

The Avtec transmission (HINDUSTAN GROUP) provides precise and seamless control over the movement of the machine with 2 forward and 2 reverse gears.

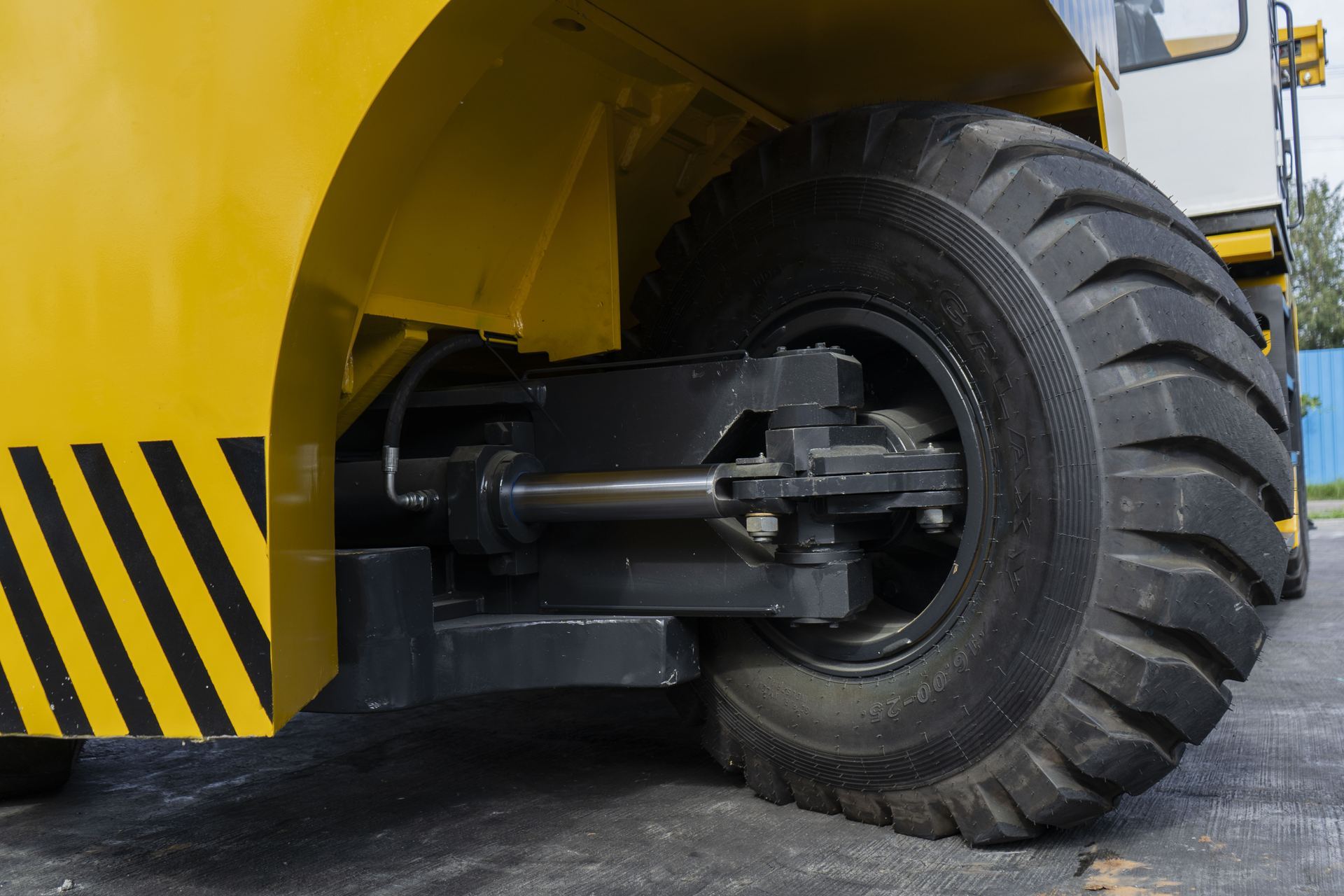

Drive axle
Equipped with TATA make heavy duty drive axle with Differential and Hub reduction. Since the reduction is achieved in both differential and hub, the stress on the drive shaft and axle shaft are reduced significantly. it completely eliminates shaft breakage issues, faced in similar equipment offered by competitors.
Key Highlights
1) Option of CE V emission nom engine.
2) I Channel used for manufacture of mast in place of C channel used by competition. I section offers superior, rigidity, strength and fatigue resistance.
3) Elevated fully enclosed all weather cabin Offers exceptional visibility during operations in all weather conditions.
4) Hub reduction in drive axle eliminates the risk of shaft breakage.
5) Robust, proven design with 100+ machine currently in service.
Technical Specifications
| Make | SCA |
| Model | PC-37 COIL STACKER |
| Lift Capacity / Load Centre | 32 Tons / 1800 mm under the tong |
| Lift Height | 9.00 meters |

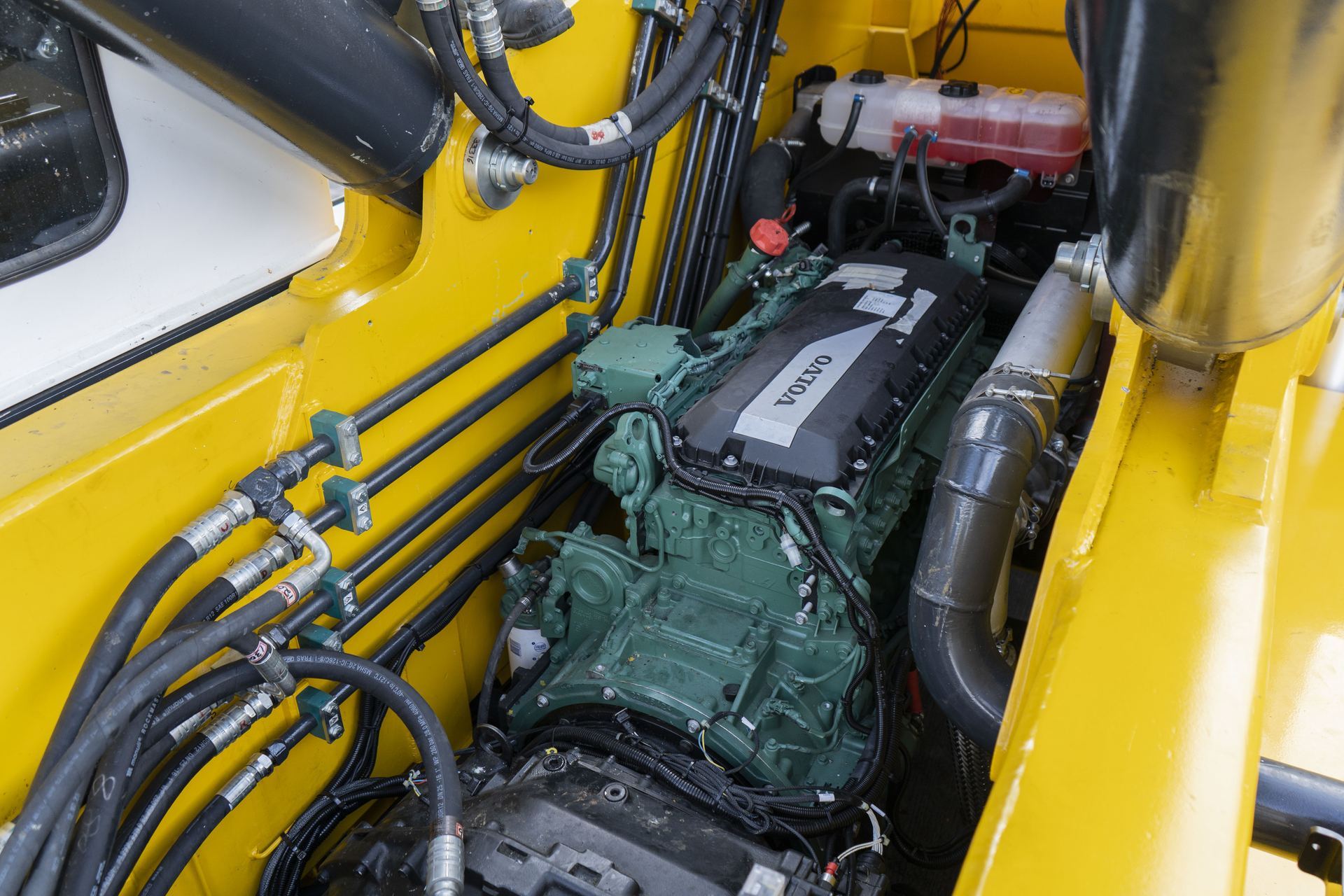

| Engine Make | VOLVO BS III Engine |
| Engine Model | TAD851VE |
| Engine Power | 248 HP @ 2200 RPM |
| Transmission Make | ZF (Germany) |
| Transmission Model | 3WG 191 |
| Transmission Speeds | 3 Forward / 3 Reverse |
| Transmission Type | Power Shift |
| Transmission Shifting | Electric |
| Drive Axle Make | KESSLER |
| Drive Axle Model | D91PL408 |
| Drive Axle Brakes | Multiple Disc – Wet Type |
| Elevated Operator Cabin |
High Mounted Regular Entry: Left Emergency Exit: Right |
| Counterweight | Single Piece, Removable Type |
| Tyres (Front) | 16.00 × 25, 32 PR (4 Nos.) |
| Tyres (Rear) | 16.00 × 25, 32 PR (2 Nos.) |
| Gross Vehicle Weight (Laden) | 84,000 KGS |
| Gross Vehicle Weight (Unladen) | 52,000 KGS |
| Colour Scheme (Chassis / CWT) | Golden Yellow |
| Wheel Base | 5,500 mm |
